W-EMC for LED Leadframe
    发布时间: 2022-09-12 12:34
W-EMC for LED Leadframe

W-EMC for LED Leadframe

Detailed Introduction

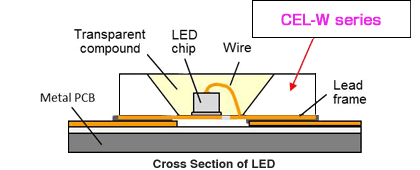

CEL-W series is thermoset resin for reflector of surface mount LED. LED reflector with good reflectance and heat

resistance is molded through transfer molding and MAP molding process.





Features

  • Good reflectance.

  • Good resitance against heat-induced and UV-induced color change.

  • Good adhesion to Ag plating and soft silicone

  • Good moisuture resistance.




      CEL-W Series          After transfer molding                After Dicing                After chip mounting



Characteristics (Tentative value)

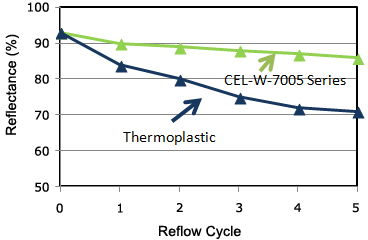

Reflow Resistance(260°C)

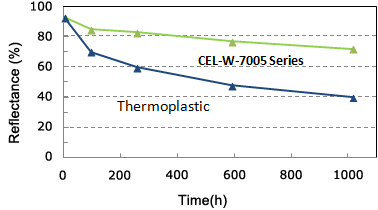

Heat Resistance(150°C)


ItemsUnitCEL-W-7005Thermoplastics
ReflectanceInitial%9393
150°C, 1000h%7040
After reflow(260°C, 5cycle)%8671
AdhesionAg platingMPa12-
CopperMPa10-
Moisture absorption%0.020.2
